LOKITHOR J403HD: A 12V 10000A Jump Starter Built for Professional Vehicle Support

For fleet operators, roadside assistance providers, repair workshops and mobile service teams, a dead vehicle battery is more than a minor inconvenience. It can interrupt deliveries, delay scheduled work and leave technicians dependent on another vehicle or an external power source.

The LOKITHOR J403HD is designed to give professional users a portable way to respond to compatible 12V vehicle starting problems. It combines 5000A starting current, 10000A peak current and a 236.8Wh internal battery with intelligent clamp monitoring, automatic and forced starting modes, voltage measurement, high-power USB-C charging and auxiliary power outputs.

Rather than functioning only as an emergency booster, the J403HD is built as a multifunctional vehicle-support tool for everyday fleet, workshop and roadside use.

What Is the LOKITHOR J403HD?

The J403HD is a professional portable jump starter developed exclusively for compatible 12V vehicle electrical systems.

Its output specifications include:

· 5000A starting current

· 10000A peak current

· 236.8Wh internal battery capacity

· 12V starting voltage

The product housing identifies it for gasoline and diesel engines up to 16.0L, subject to vehicle condition, temperature, battery condition and correct connection.

The J403HD is intended for professional environments where technicians may need to restore vehicles without waiting for another service vehicle, locating an AC outlet or connecting traditional booster cables between two vehicles.

Typical users include:

· Fleet maintenance teams

· Roadside assistance providers

· Truck and diesel repair workshops

· Commercial vehicle dealerships

· Logistics and rental businesses

· Municipal vehicle departments

· Mobile service technicians

The J403HD must only be used with compatible 12V systems. It should not be connected to vehicles with non-specified starting voltages.

5000A Starting Current and 10000A Peak Output

Peak current is often the most visible figure on a jump starter, but professional users also need to understand the difference between starting current and momentary peak output.

The J403HD is rated for:

The 5000A starting-current rating represents its main cranking capability, while the 10000A figure describes the maximum peak output available under specified conditions.

Actual jump-start performance can vary according to:

· Engine size and mechanical condition

· Ambient temperature

· Condition of the vehicle battery

· Remaining charge in the J403HD

· Clamp contact quality

· Cable and terminal condition

For that reason, the J403HD should not be selected using peak current alone. Technicians should first confirm that the vehicle uses a 12V starting system and then inspect the battery and connection points before starting.

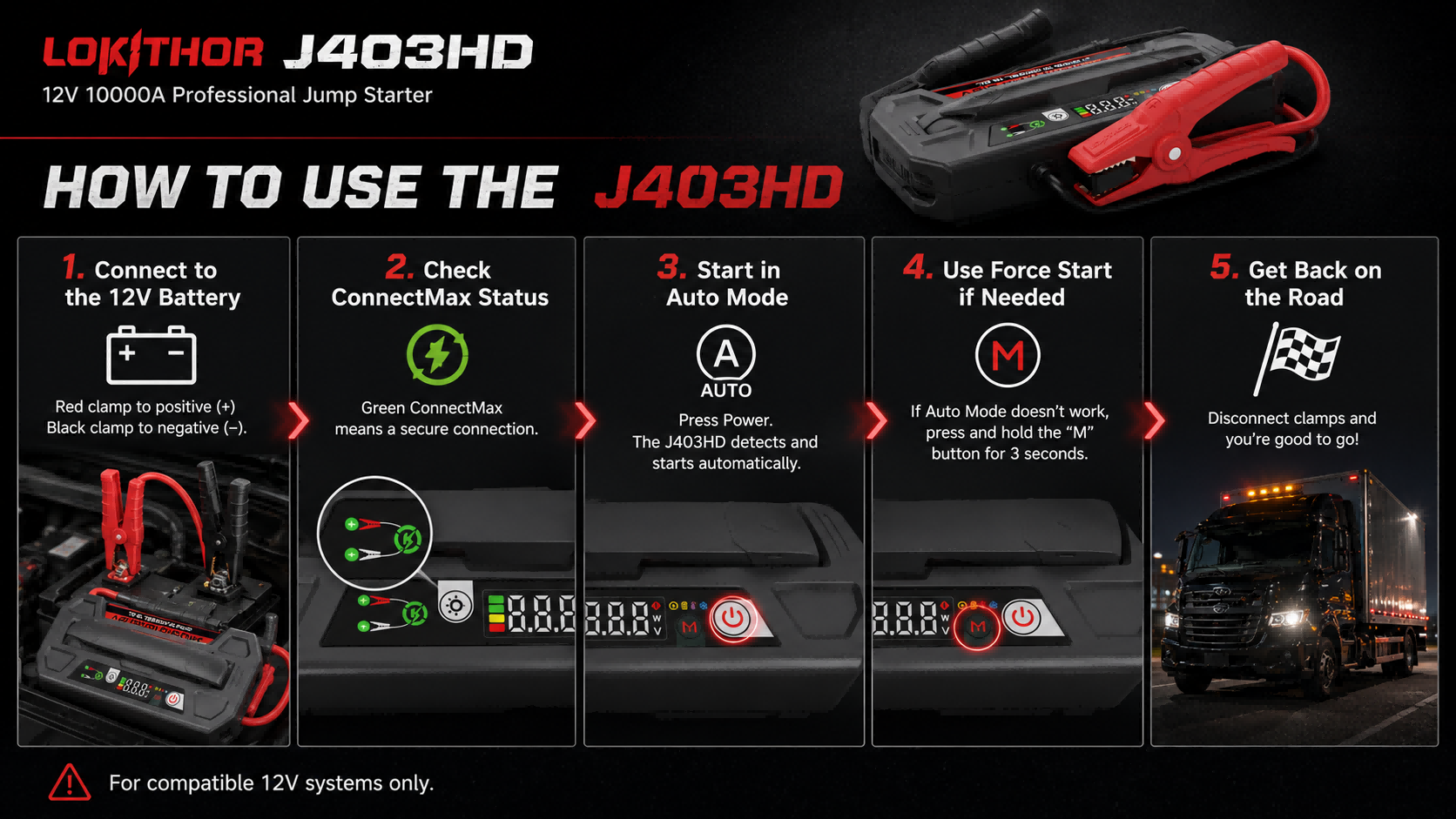

Automatic Start for Routine Vehicle Recovery

For normal jump-start situations, the J403HD provides an automatic 12V starting process.

After the clamps are connected to the correct battery terminals, the device performs a short countdown while checking:

· Polarity

· Clamp connection

· Vehicle-battery condition

· Connection impedance

· Whether the system meets automatic-start conditions

When the connection is valid, the start indicator illuminates and the vehicle can be started.

This process helps simplify routine roadside and workshop operations because technicians receive visual feedback before attempting to crank the engine.

The manual recommends starting the vehicle promptly after the connection has been confirmed. If the vehicle does not start, users should inspect the battery terminals, improve clamp contact and wait before trying again rather than repeatedly cranking without interruption.

ConnectMax Monitors Clamp Connection Quality

One of the most useful professional features of the J403HD is the ConnectMax battery-clamp connection status system.

During automatic-start preparation, the system checks the connection between the clamps and the vehicle battery.

The clamp indicators communicate connection quality:

· Green: good connection

· Yellow: weak or high-impedance connection

· Flashing or abnormal indication: connection should be checked again

A weak clamp connection can reduce the current reaching the starter motor and may cause unnecessary heat, voltage drop or failed starting attempts.

ConnectMax helps the technician identify this problem before starting. If the connection quality is poor, the user can reposition the clamps, clean the terminal contact area or confirm that the correct positive and negative terminals are being used.

This is particularly useful in fleet and roadside environments, where battery terminals may be dirty, oxidized, recessed or difficult to access.

Forced Start for Selected Deeply Discharged Batteries

The J403HD also includes a forced-start mode for situations in which the automatic system cannot detect the vehicle battery normally.

Forced start is not intended to be the default operating method. Some automatic protection functions are temporarily bypassed or reduced, which means the technician must confirm polarity and connection accuracy before activation.

To use forced start, the operator connects the red clamp to the positive terminal and the black clamp to the negative terminal, then holds the forced-start button for five seconds.

Once activated, the J403HD supplies starting voltage directly in parallel with the vehicle battery.

Forced-start mode should be used only when:

· The vehicle has a compatible 12V system

· Automatic start does not activate

· Clamp polarity has been independently verified

· The battery is not physically damaged, leaking or frozen

· The user understands the forced-start instructions

Incorrect use can create a risk of short circuit, sparks, battery damage or vehicle electrical damage. The manual specifically advises users to read and understand the forced-start procedure before using it.

Built-In Voltmeter for Faster Diagnosis

The J403HD is not limited to supplying starting power. It can also measure the voltage of a connected 12V vehicle battery.

After connecting the red and black clamps to the correct terminals, the device displays the vehicle battery’s current voltage on the main screen.

This provides technicians with a quick reference before attempting a jump start.

For example, the voltage display can help determine whether:

· The vehicle battery is deeply discharged

· The battery retains some charge

· The terminal connection is stable

· Further testing may be necessary

The voltmeter is a useful first diagnostic step, but it does not replace a complete battery conductance, load or charging-system test.

Designed for Professional Field Service

The J403HD combines high starting output with a portable, self-contained design.

For professional users, this can reduce reliance on:

· Another donor vehicle

· Long booster cables

· Heavy lead-acid booster carts

· Nearby AC power

· Fixed workshop equipment

The unit can be stored in a service vehicle or carried directly to a disabled car, van, pickup or other compatible 12V vehicle.

Its display provides information about battery level, voltage, operating status, connection polarity, charging reminders and high- or low-temperature conditions. The interface also shows positive- and negative-clamp connection status.

These visual indicators are especially valuable in busy workshops or low-light roadside environments where technicians need to verify operating status quickly.

100W USB-C Input and Output

The J403HD supports USB-C power input and output up to 100W.

Its USB-C port supports:

· 5V

· 9V

· 12V

· 15V

· 20V

· Up to 5A

· Maximum 100W

This enables faster recharging when the product is paired with a compatible USB-C PD charger and cable.

The same USB-C connection can also provide high-power output to compatible devices, allowing the J403HD to function as a portable power source for selected laptops, tablets, phones and other USB-C equipment.

A USB-A port is also included, supporting QC output up to 18W for compatible mobile devices.

This two-way power capability is useful for roadside and mobile technicians who may need to power communication or diagnostic equipment while away from a fixed power source.

12V DC Output for Compatible Equipment

In addition to USB power, the J403HD includes a 12V/10A DC output.

The package includes a 12V cigarette-lighter-to-DC5521 adapter cable, allowing the product to supply compatible 12V equipment within the supported output limits.

Possible applications may include selected:

· Portable inflators

· Work lights

· Vehicle accessories

· Small diagnostic tools

· Other compatible 12V equipment

Users must confirm the required voltage, current and connector type before connecting external equipment. Devices exceeding the 12V/10A output specification should not be used.

400-Lumen Multi-Mode LED Light

The J403HD incorporates a 400-lumen LED work light.

The light supports several modes:

· Steady light

· Strobe

· SOS

· Off

This allows the product to provide illumination during nighttime vehicle service and to function as an emergency warning or signalling light.

For roadside teams, the LED can help illuminate battery terminals and engine compartments. The strobe and SOS settings can also improve visibility in emergency situations, although the device should not replace approved roadside warning equipment.

Built for a Wide Operating-Temperature Range

The J403HD is specified for operation from −20°C to 60°C and charging from 0°C to 45°C.

Its recommended storage range is −20°C to 50°C.

The built-in display includes high- and low-temperature indicators. If the product is too hot or too cold, it may activate temperature protection until conditions return to the supported range.

Users should avoid:

· Charging below 0°C

· Leaving the product in direct sunlight

· Long-term exposure to extreme heat

· Storage in wet or highly humid locations

· Attempting repeated starts while temperature protection is active

Actual starting capability may decline in very cold environments, particularly when both the vehicle battery and the J403HD are cold.

Safety Protection and Error Indicators

The J403HD monitors several operating conditions and displays error or warning indicators when an abnormal condition is detected.

The manual identifies alerts for:

· Over-temperature protection

· Low-temperature protection

· Abnormal device faults

· Reversed clamps

· Insufficient jump-starter charge

· External vehicle-battery voltage above the supported range

· Automatic-start detection failure

If the vehicle battery voltage exceeds the supported starting voltage, the product should not be used. A reading associated with a 24V system indicates that another correctly specified jump starter is required.

The product must also not be used on damaged, leaking, swollen or frozen batteries.

J403HD Key Specifications

The stated cycle life depends on charging practices, storage conditions, operating temperature, depth of discharge and general product care.

What Is Included in the Package?

The standard package includes:

· J403HD main unit

· User manual

· USB-C to USB-C cable

· USB-A to USB-C cable

· 12V cigarette-lighter-to-DC5521 cable

· Accessory storage bag

These accessories support USB-C recharging, mobile-device charging and compatible 12V DC output applications.

Is the J403HD Right for Your Operation?

The J403HD is best suited to organizations that primarily service compatible 12V gasoline and diesel vehicles and need a portable tool that combines starting, voltage checking, device charging, DC power and emergency lighting.

It may be a strong fit for:

· Commercial fleets dominated by 12V vehicles

· Roadside assistance vehicles

· Mobile repair services

· Automotive and diesel workshops

· Vehicle dealerships

· Rental and municipal fleets

It is not designed for 24V vehicle systems. Businesses working regularly with heavy 24V trucks, buses or industrial equipment should select a jump starter specifically rated for 24V operation.

Conclusion

The LOKITHOR J403HD is more than a high-peak-current booster.

Its 5000A starting current, 10000A peak output and 236.8Wh capacity provide the foundation for professional 12V vehicle starting. ConnectMax clamp monitoring, automatic and forced-start modes, voltage measurement and temperature indicators help technicians operate with greater visibility.

At the same time, 100W USB-C input and output, 12V DC power, USB-A charging and a 400-lumen LED light extend its role beyond jump starting.

For fleet maintenance, roadside response and mobile workshop teams, the J403HD is designed to help restore compatible 12V vehicles quickly while reducing dependence on donor vehicles and fixed power sources.

Frequently Asked Questions

1. What vehicles can the LOKITHOR J403HD jump-start?

The J403HD is designed for compatible 12V gasoline and diesel vehicle systems. It is suitable for applications such as passenger cars, SUVs, pickups, commercial vans, RVs, light-duty trucks and fleet service vehicles. It must not be connected to a 24V starting system.

2. What is the difference between 5000A starting current and 10000A peak current?

The J403HD is rated at 5000A starting current for engine cranking and 10000A peak current for short-duration maximum output under specified conditions. Actual starting performance depends on engine condition, ambient temperature, the vehicle battery, clamp contact and the J403HD’s remaining charge.

3. Can the J403HD jump-start a completely dead battery?

The J403HD may assist a deeply discharged compatible 12V battery. If automatic start cannot detect the battery, the unit provides a forced-start mode.

Forced start should only be used after confirming the vehicle voltage, clamp polarity and secure terminal contact. It cannot repair a frozen, leaking, physically damaged or internally failed battery.

4. When should I use Forced Start Mode?

Use Forced Start Mode only when the normal automatic-start process does not activate and you have independently confirmed that the vehicle uses a 12V system.

Connect the red clamp to positive and the black clamp to negative, then press and hold the M button for five seconds. Some automatic safety protections are reduced in this mode, so incorrect use may damage the battery, vehicle or jump starter.

5. What does the ConnectMax function do?

ConnectMax checks the quality of the connection between the clamps and the vehicle battery before starting.

· Green: secure connection

· Yellow: weak or high-resistance connection

· Abnormal or flashing indication: reconnect the clamps and inspect the terminals

This helps technicians identify poor contact before attempting to start the engine.

6. Can the J403HD display the vehicle battery voltage?

Yes. The built-in voltmeter displays the voltage of a connected 12V vehicle battery after the clamps are attached correctly.

It provides a quick voltage reference before starting, although it does not replace a complete battery load, conductance or charging-system test.

7. Can the J403HD charge phones, laptops or other devices?

Yes. The J403HD supports:

· USB-C input and output up to 100W

· USB-A output up to QC 18W

· 12V/10A DC output for compatible equipment

It can power selected phones, tablets, laptops, work lights and other compatible devices, provided their voltage, current and connector requirements remain within the supported limits.

8. What operating temperatures does the J403HD support?

The specified temperature ranges are:

· Charging: 0°C to 45°C

· Operation: −20°C to 60°C

· Storage: −20°C to 50°C

High- or low-temperature protection may temporarily prevent operation until the product returns to a suitable temperature.

9. Does the J403HD include an emergency light?

Yes. It includes a 400-lumen LED light with steady, strobe and SOS modes. It can illuminate an engine compartment or provide emergency visibility during roadside service.

10. How long is the J403HD expected to last?

The manual specifies a cycle life of more than 1,000 cycles under good conditions. Actual service life depends on charging habits, operating temperature, storage conditions, depth of discharge and maintenance.
